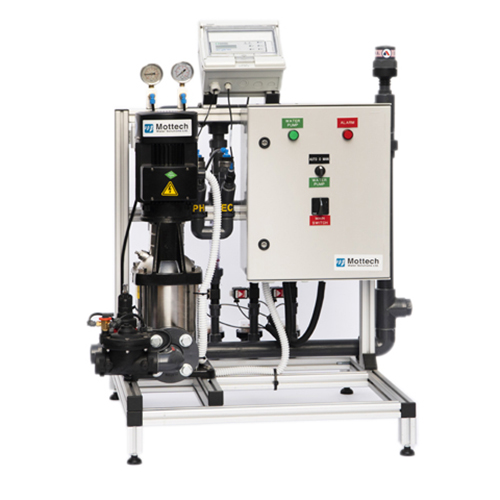

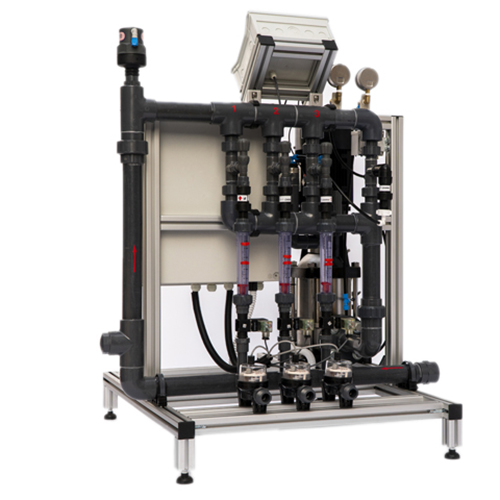

Mottech By-Pass Fertigation Equipment

Mottech by-pass fertigation machine designed to inject fertilizers and acid into the irrigation water.

The fertigation machine locates in parallel to the main irrigation line and injects the nutrients and acid using venture pumps with fertilizers meters and under monitoring of EC and pH sensors.


BROCHURE CONTACT US
Category:

Description

How does it work?

Mottech by-pass fertigation machine designed to inject fertilizers and acid into the irrigation water.

The fertigation machine locates in parallel to the main irrigation line and injects the nutrients and acid using venture pumps with fertilizers meters and under monitoring of EC and pH sensors.

The IRRInet & ICC PRO system manage the fertigation machine and divide the fertilizers all along the irrigation process according the operator demands.

Mottech fertigation machine design to perform irrigation and fertigation of open field, orchards, vineyards, green houses and other applications.

Highlights

  • Full integration with the IRRInet & ICC PRO system
  • Suitable for large agriculture multi-valves systems of open field, orchards and green houses
  • Remote Terminal Units (i.e. Piccolo XR’s) management capabilities
  • On-line alarms
  • Remote and local operation
  • Up to 500 irrigation & fertilizer programs
  • Multi irrigation lines system – one machine for many lines
  • Made from high quality components: corrosion-resistant frame, stainless still booster pump, adjustable legs
  • EC and pH monitoring
  • Fertilizer counter and monitoring for each Injector



Technical Specifications:

  • Mainline water pressure range: 3 to 6 bar
  • Up to 5 dosing channels
  • Channel flow (each): 160 l/h, 350 l/h, 500 l/h or 1000 l/h
  • EC/pH calibration controller
