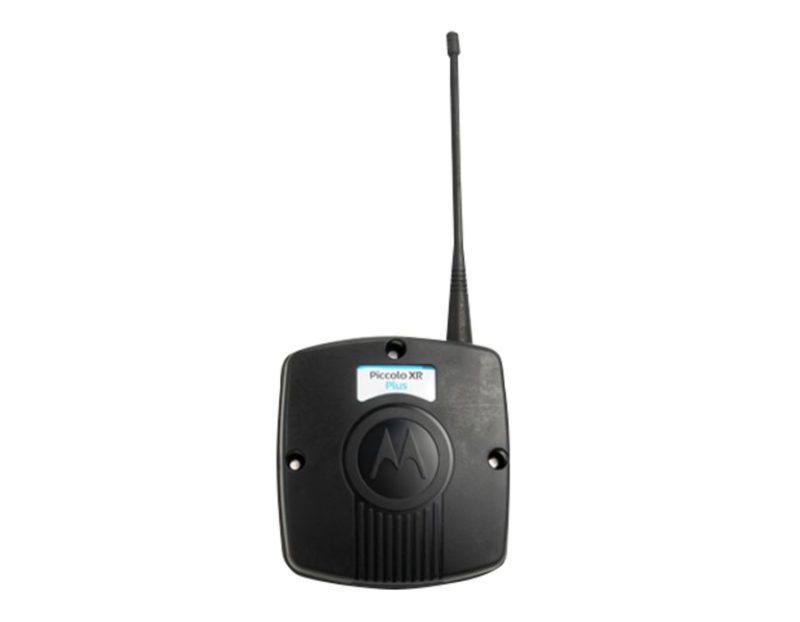

Piccolo XR Plus

The Piccolo XR Plus is a small-sized wireless remote terminal unit that operates as an integral part of the IRRInet system. Extending the capabilities of the basic unit, the Piccolo XR extended unit operates up to 8 latched outputs and may receive up to 12 digital inputs.

The Piccolo XR Interface Unit (PIU) is connected to the IRRInet Field Unit, and communicates with the Piccolo XR Plus unit via its internal two-way low-power radio.

This includes two Piccolo units within a singular box to maximize asset management capabilities!




BROCHURE CONTACT US

Warranty

1 YEARWARRANTY

The Piccolo XR Plus is a small-sized wireless remote terminal unit that operates as an integral part of the IRRInet system. Extending the capabilities of the basic unit, the Piccolo XR extended unit operates up to 8 latched outputs and may receive up to 12 digital inputs.

The Piccolo XR Interface Unit (PIU) is connected to the IRRInet Field Unit, and communicates with the Piccolo XR Plus unit via its internal two-way low-power radio.

Both the Piccolo XR Plus and the PIU are equipped with configurable internal 10/100mW radios to extend radio coverage, and can function as part of the communication network, using store and forward protocol.

This Piccolo XR series was designed to work in nearly all environments. With a selfcontained, secured enclosure structure, these units can be installed and ready to work with your IRRInet system in minutes.

Endowed with very low power requirements, the Piccolo XR Plus is a high-efficiency unit. This apparatus ships complete with a 6V/90mA solar panel, designed to prolong the battery’s lifespan, provide a stable energy source, and ensure reliable communications.

The Piccolo XR Plus is available in 3 I/O’s models:

  • 6DI/ 6DO
  • 8DI/ 8DO
  • 12DI/ 4DO

Highlights

  • Integral unit of the IRRInet system
  • Powerful Store & Forward capabilities
  • Very Low power consumption
  • Up to 8 latched outputs and can receive up to 12 digital inputs

Self-Sufficient

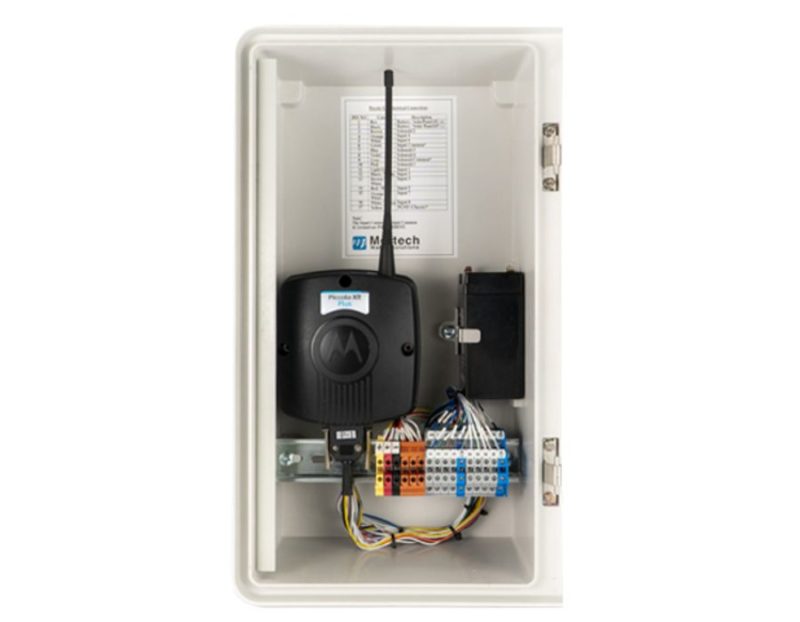

The Cabinet Assembly System (CAS) is a Mottech enclosure with a built in solar panel and a strong integrated locking system to prevent vandalism and un-authorized access.

The Piccolo XR Plus is a high efficiency unit designed with very low power requirements. The unit ships complete with a 6V/90mA solar panel, designed to extend the life of the battery, provide a stable energy source and insure reliable communications.

Capability

The XR Plus is utilized in hundreds of various applications across thousands of units.

  • Asset Management Control
  • Master valve control – Within HOA’s, and Cities, the XR is wireless controlling Master Valves to minimize risk associated with broken Mainlines and Valves that fail in the open position.
  • Monitoring Options – Tracking flow, Pressure, Water Levels, Soil Moisture, pH and Salinity.

Advanced and autonomic communication capabilities

The Piccolo XR Plus communication using an integrated, low power radio providing range capabilities of 2-3 km depending on the terrain. Powerful Store and Forward capabilities allow for extended coverage using multiple XR units deployed in a an advance network methodology.

Technical Specifications:

Frequency range

  • 430-450MHz
  • 450-470MHz

Piccolo XR Plus Power Supply

  • External 6VDC for Piccolo XR
  • 6 to 12VDC for PIU

Available I/O models

  • 6DI/ 6DO
  • 8DI/ 8DO
  • 12DI/ 4DO

Environmental Conditions

Operating temperature: -30° C to + 60° C
(-22° F to + 140° F)
