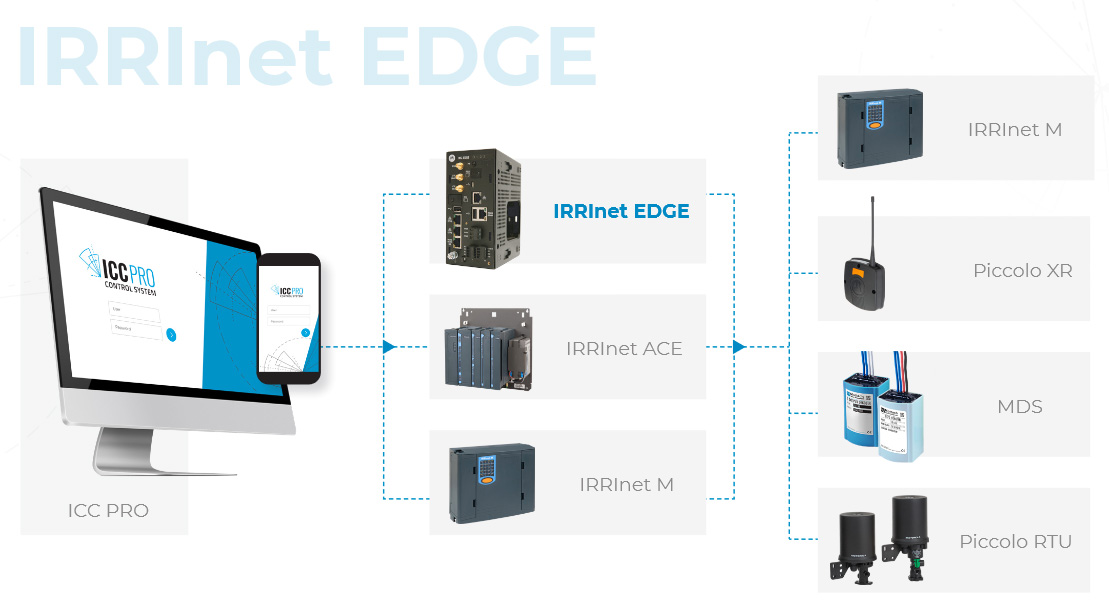

Integral part of the ICC PRO and IRRInet solution IRRInet EDGE is compatible with the ICC PRO’s central software and with all the IRRInet line of products including IRRInet ACE & M, Piccolo XR, Piccolo RTU and the MDS (Mottech Decoder System) via MDS Interface.
The IRRInet Edge gateway enables exceptional remote monitoring and control capabilities.
This control unit is another controller in the IRRInet product family and is a bridge that connects us between the Motorola control systems that exist today, and the latest communication infrastructures based on IoT and IP.
Integral part of the ICC PRO and IRRInet solution. IRRInet EDGE is compatible with the ICC PRO’s central software and with all the IRRInet line of products including IRRInet ACE & M, Piccolo XR, Piccolo RTU and the MDS (Mottech Decoder System) via MDS Interface.
IoT Connectivity Communication Ports on CPU
The IRRInet EGDE is an intelligent gateway designed
for IoT applications. Compatible with P25, LTE and
LoRa, and is capable of handling input from hundreds
of low-voltage wireless sensors, up to 10 km away
Variety of Modules
The IRRInet EDGE offers a wide range of I/O modules
(digital and analog) to facilitate irrigation & water
control and monitoring applications, in addition CPU
contains 3DI + 1DO
• RS232/RS485
• Ethernet
• OTG
• More expansion options
• 9-30V DC
• Preconfigured thresholds based scenarios
• 5 power consumption options available
On-site and remote programming
Software
• Maintaine tool: STS
• MDLC Networking: Yes
• RTU to RTU communication: Yes
• MDLC Store and Forward: Yes
• Services: DNS, DHCP
• Protocols: MLDC, Modbus, SSH, SFTP
Internal communication device
• LTE: 4G, 3G, 2G
(Depending on the location)
• LORA GATEWAY:
863 – 870 MHz, 902 – 928MHz
• More communication device available
(not internal)
IO’s
• Main board: 3DI + 1DO
• Input Module: 12DI+ 8AI (AI: 0 -20mA, 4 -20mA, 0-5V)
• Output Module: 8DO + 2AO (AO: 0 -20mA, 4 -20mA, 0-10V)
• Mixed I/O Module: 7 DI+6 DO + 4AI
(0-20mA, 4-20mA) 1AO (AO: 0 -20mA, 4 -20mA, 0-10V)
• More modules in the future
General
• Dimension: 2.95” x 6.3” x 4.4” (WxHxD)
(main/each expansion)
• Installation: Din rail / Wall mount option
• Construction: Modular
• Internal Transceiver Options: P25, LTE, LoRa
• External Connections:
Analog, MOTOTRBO, TETRA, P25, Null Modem
